GEONIA Silt Protector is a silt fence installed in water for preventing the spread of environmental contaminants induced by coastal and riverside construction.
Leakage of silt from marine and sewage constructions has caused serious effect on surrounding regions.

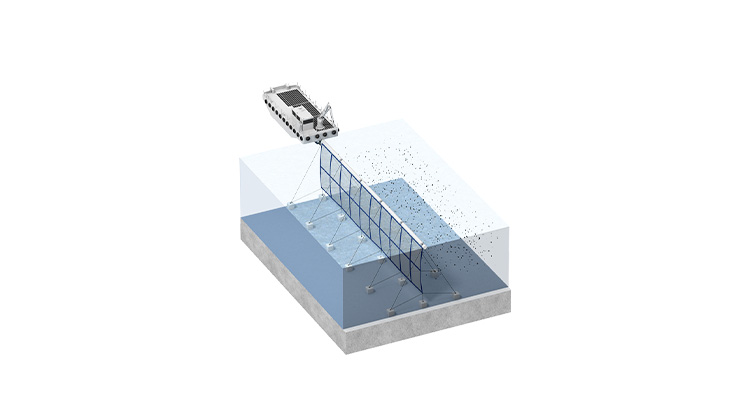

GEONIA Silt Protector is used to preserve the natural environment and protect marine resources. By blocking a specific water zone with a special membrane composed of high strength synthetic fiber, soil particles that occur in the area are filtered and precipitated to prevent the leakage and spread of silt water.
Leakage of silt from marine and sewage constructions has caused serious effect on surrounding regions.
GEONIA Silt Protector is used to preserve the natural environment and protect marine resources. By blocking a specific water zone with a special membrane composed of high strength synthetic fiber, soil particles that occur in the area are filtered and precipitated to prevent the leakage and spread of silt water.
Applications

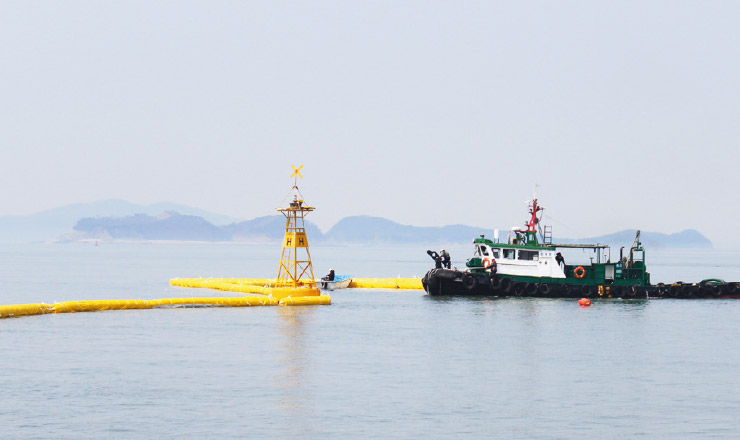

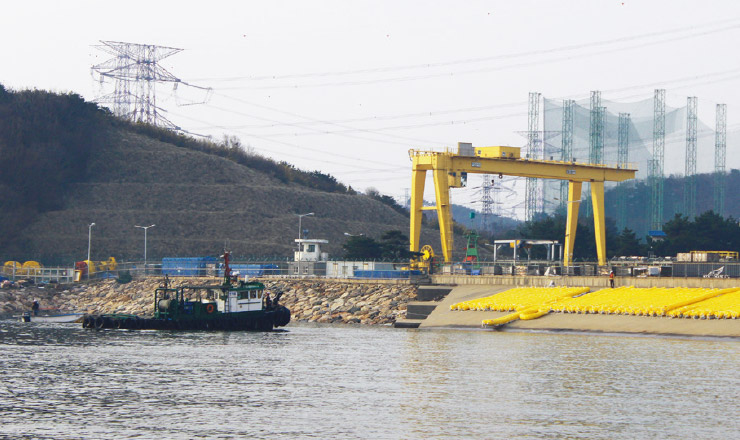

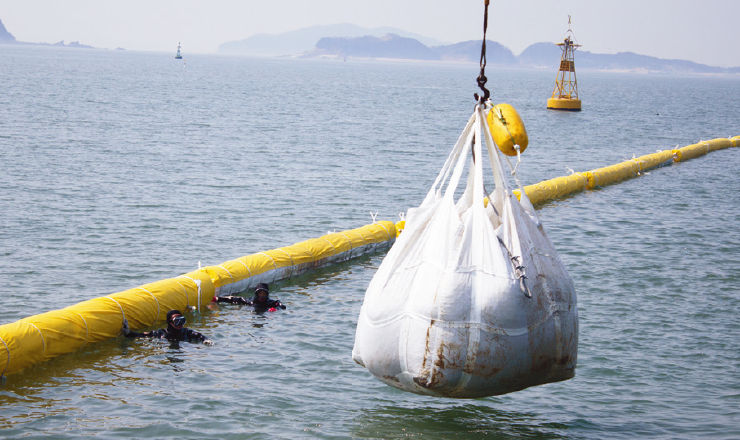

| Protection of sea farming area | Prevention of pollution from reclamation work | Prevention of pollution from revetment |
| GEONIA Silt Protector Fabric | Standard | Unit | DSP15 | DSP20 | DSP25 | DSP30 | DSP40 | DSP50 | |
|---|---|---|---|---|---|---|---|---|---|
| Mechanical Properties | |||||||||
| Tensile Strength | MD | ISO 10319 | kN/m | ≥150 | <≥200 | ≥250 | ≥300 | ≥400 | ≥500 |
| CD | kN/m | ≥150 | ≥200 | ≥250 | ≥300 | ≥400 | ≥500 | ||
| Tensile Elongation | MD | % | ≤20 | ||||||
| CD | % | ≤20 | |||||||
| Puncture Resistance Strength CBR | ISO 7771 | % | ±0.2 | ||||||
| Hydraulic Properties | |||||||||
| Flux (h:50mm) | ISO 11058 | l/m2/sec | ≥1 | ||||||
| Permittivity (h:50mm) | S-1 | ≥ 0.02 | |||||||
| Material & Size | |||||||||
| Material of Fabric | High Strength Polyester | ||||||||
| Float Size | mm | 300 - 500 | |||||||
