GEONIA Geo Tube is a durable product with high strength made of PET Woven Geotextile. It can be used for the construction of embankments, breakwater, and temporary jetty.
GEONIA Geo Tube is the product of superior durability as it uses high strength woven geotextile and patented sewing technology, It maximizes the utilization of Geo Tube through structural design and high-quality products tailored to the conditions of the construction site.
GEONIA Geo Tube is the product of superior durability as it uses high strength woven geotextile and patented sewing technology, It maximizes the utilization of Geo Tube through structural design and high-quality products tailored to the conditions of the construction site.

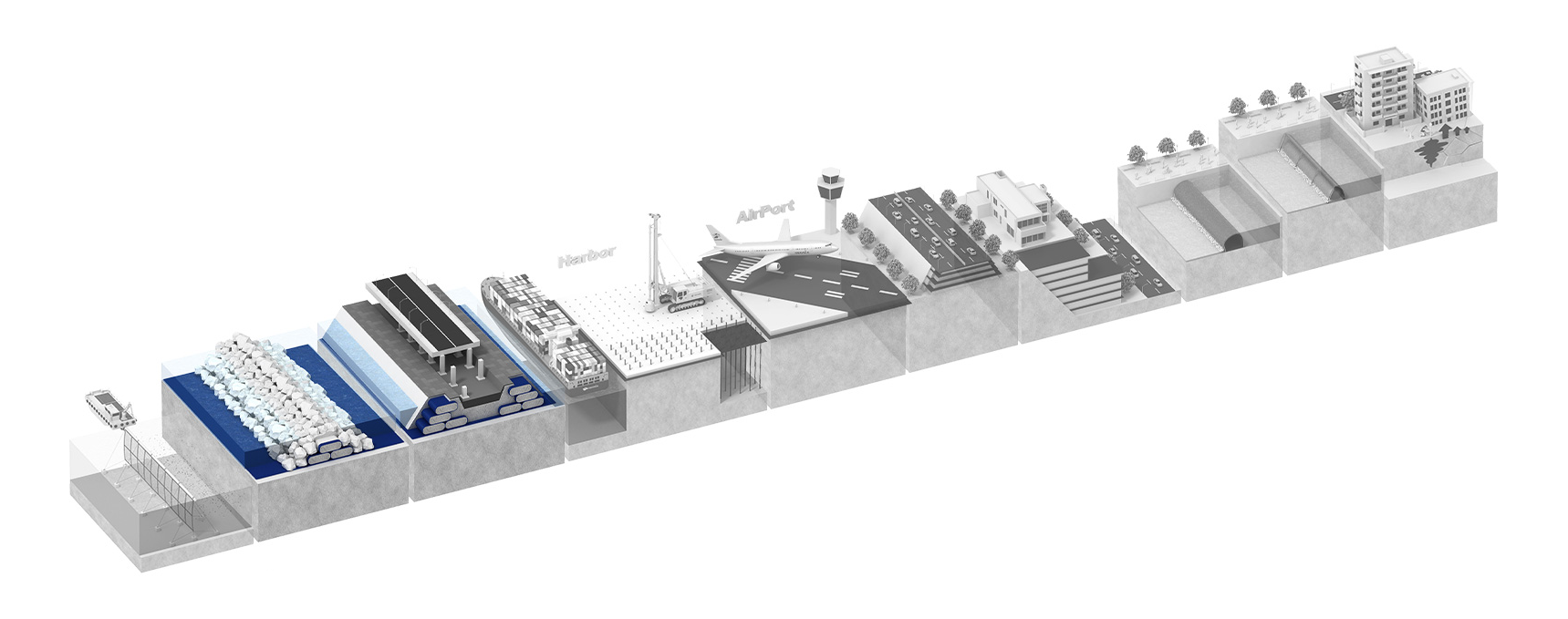

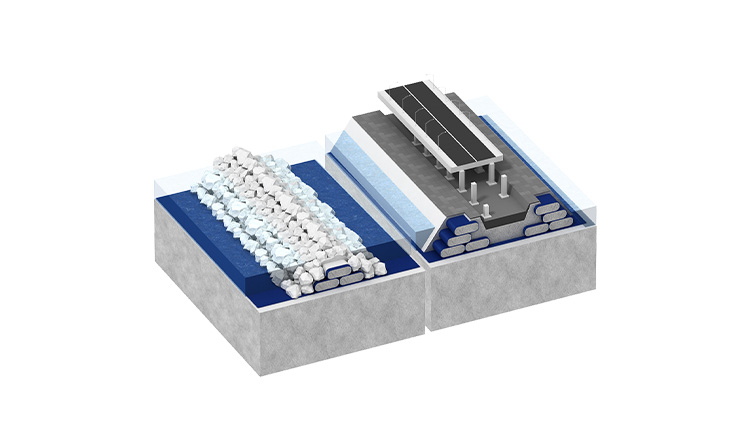

Applications
| Break water | Cofferdam |
| Costal dune protection | Sewage treatment |
| GEONIA DT-GEOTUBE | Test Method | Unit | DT-15 | DT-20 | DT-30 | ||||
|---|---|---|---|---|---|---|---|---|---|
| Mechanical Properties | |||||||||
| Tensile Strength | MD | ISO 10319 | kN/m | ≥150 | ≥200 | ≥300 | |||
| CD | kN/m | ≥150 | ≥200 | ≥300 | |||||
| Tensile Elongation | MD | % | ≤15 | ≤15 | ≤15 | ||||
| CD | % | ≤15 | ≤15 | ≤15 | |||||
| Factory Seam Strength | ISO 10321 | kN/m | ≥75 | ≥100 | ≥150 | ||||
| Hydraulic Properties | |||||||||
| Water flow rate (h:50mm) | ISO 11058 | l/m2/sec | ≥20 | ||||||
| Apparent Opening Size (O95) | ISO 12956 | mm | ≤ 0.5 | ||||||
| UV Resistance (Retained Strength 320hrs) | ISO 12224 | % | ≥60 | ||||||
